  • REFRIGERATED COUNTER - 464 L - 4 GROUP DOORS HOUSED CENTRAL - DEPTH 700 - GN 1/1 - NEGATIVE COLD

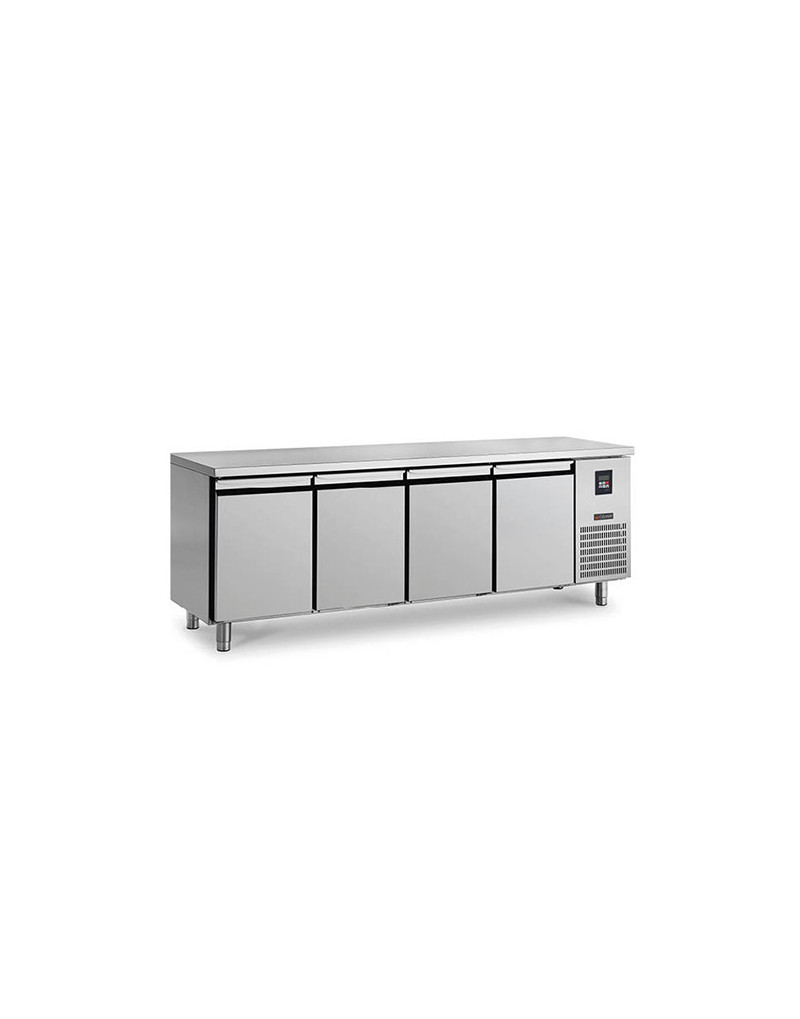

REFRIGERATED COUNTER - 464 L - 4 GROUP DOORS HOUSED CENTRAL - DEPTH 700 - GN 1/1 - NEGATIVE COLD

CODE : TGB7D/220

• AISI 304 stainless steel structure (visible parts).

• High density polyurethane insulation (40 kg/m³) 50 mm thick.

• Negative ventilated cold: - 20°C / -15°C.

• Refrigerated unit housed in R290 gas or remote refrigerated unit.

• Doors with automatic closing device and hold open with reversible hinges.

• Electronic temperature control.

• Automatic defrosting with electric heaters.

• Automatic defrost water evaporation.

• Climatic class 5.

• Power supply: MONO 230 V.

EQUIPMENT (PER DOOR):

• 1 GN 1/1 grid.

TO KNOW: Group version on the left: Replace the D with an S in the code. Same price

E-tech by GEMM
TGB7D/220

Data sheet

capacity
464 L
EXTERNAL DIMENSIONS
2220 × 700 × 850
POWER
688 W
WEIGHT
189 kg
NUMBER OF DOORS
4
COLD VERSION
Negative
GROUP
accommodated
WORKPLAN
Central
